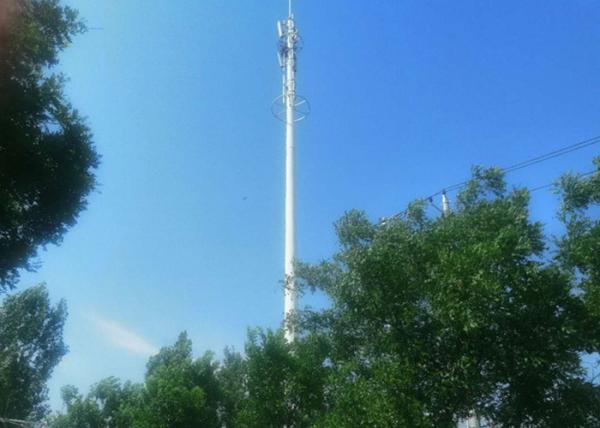

Hot DIP Galvanized Self Supporting Mobile Cell Tower ,ASTM A36
Monople Telecom Tower
1. Production decription
Paremeter of the mobile cell tower as following:
Height : 5-100M
Details & Shape : Can be designed as per customer's requirement
Good's Description : Cable and Ladder can be assembled by
customer's requestment
Surface : Hot Dip Galvanization or color painting
Connection : Overlapping or flange connection
Galvanizing Standard: EN ISO 1461,ASTM/A123 or equivalent
Working & Resting Platform Quantity: 1-3 PCS
Antenna Support: 3-18 PCS
Microwave Dish: 3-18 PCS
Certificate : ISO9001-2015,ISO14001-2015,OHSAS45001-2015,SGS
Welding Standard : BSEN287, BSEN288 or equivalent
Name |
Hot DIP Galvanized Self Supporting Mobile Cell Tower ,ASTM A36
Monople Telecom Tower |
Material | Q345B/A572, Gr50 /S355JR minimum yield strength >=345MPA; Q235B/A36/S235JR, minimum yield strength>=235MPA |
Design Standard |
AWS D 1.1; ASTM123, ANSI-TIA-222-H |
Bolt Grade | Grade 8.8,grade 6.8 or grade 4.8 |
Basic Wind Speed | 0-330km/h |
Payment | 30% deposit and 70% before shipment |
Delivery Time | usually 30 days after deposit received |
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2009,is a leading professional manufacturer in the field of
transmission line towers (the voltage up to 1000kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 60,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
Certificate as following:
2. Production capacity
| production capacity per month | 3000 tons |
3. Technical support
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality Control
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly: trial assembly before
galvanzation and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
8. Product catalogue:
