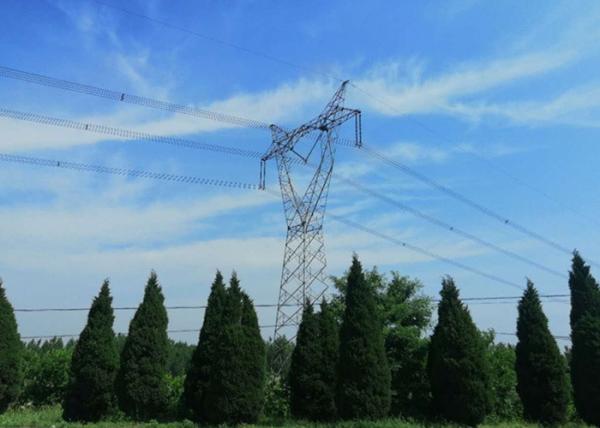

220KV High Tensible Steel Q345B Transmission Power Pylons
1. Production decription
We are professional manufacturer of electrical transmission power
pylons used in high voltage AC and DC systems .
Heigth from 9m to 100m
Transmission Power Pylons Voltage from 10-1000KV
The transmission power pylons meet ASTM Standards,GB/T standards and related standards .
Steel grades
Tower legs: Chinese standard Q345B, which equal to ASTM A572 Grade
50
Others members: Chinese Q235B, which equal to ASTM A36
Bolts: Chinese grade 6.8 and 8.8, which equal to ASTM A394
Dimension and tolerance for angle : GB/T1591-1994, Equal to EN
10056-1/2
Hot dip galvanization: GB/T 13912-2002, which similar to ASTM A 123
The welding :AWS D1.1 or CWB standard
If the thickness of the material not less than 5mm,The min average
thickness of the galvanization of transmission power pylons is more
than 86um.
Type test and preshipment test is accepted .
If needed ,we even can supply an engineer for help installing the
transmission power pylons.
Catalogue of the transmission power pylons as followings :
Certificate of transmission power pylons:
2. Product capacity
Qingdao Liangta Steel Structure Co.,Ltd is not a big factory ,But
we manufacturer every tower by heard . .
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience
of transmission power pylons
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every tranmsission steel
towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly for transmission power
pylons : trial assembly before galvanzation
and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angel
steel tower ,we use plastic to package two ends .
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2009,is a leading professional manufacturer in the field of
transmission steel towers (the voltage up to 1000kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 40,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
9. Product catalogue:
