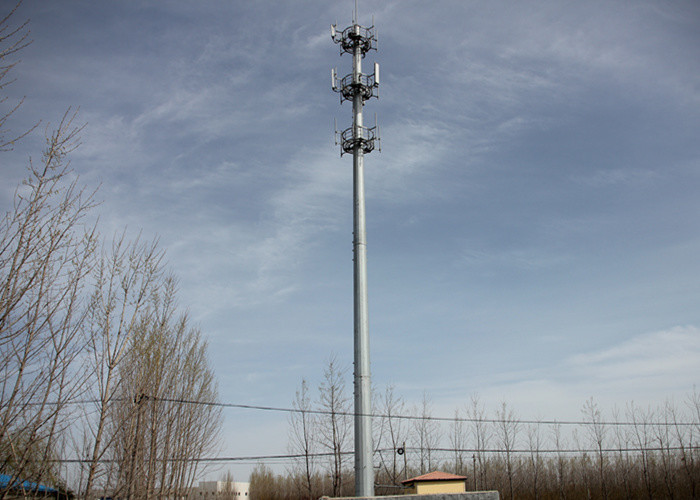

Q235B Carbon Structural Steel Telecom Tower Galvanized Steel
Tubular Pole Steel Monopole
1. Production decription
Telecommunication Tower
Height: 5-100M
Wind Pressure: 5-300 KM/H
Material: Q345B/A572,minimum yield strength>=355N/mm2
Q235B/A36,minimum yield strength>=235N/mm2
Details: Can be designed as per customer's requirements
Good Description: Cable and Ladder are assembled inside
Delivery Time: 30 Days after receiving deposit
Coating: Hot Dip Galvanization Minimum 86um and Color Painting
Working & Resting Platform Quantity : 1-3 PCS
Antenna Support: 3-18 PCS
Minimum order quantity: one set
Spare Parts:All necessary parts for installation and connection
Others: As per customer's request and drawings
| Height | 5-100M |
| Wind Pressure | 0-300 KM/H |
| Connection | Overlapping or flange |
| Material | Q345B/ASTM A572 Grade 50, minimum yield strength >=345MPA;
Q235B/ASTM A36, minimum yield strength>=235MPA |
| Details & Shape | Can be designed as per customer's requirement |
| Good's Description | Cable and Ladder can be assembled by customer's request |
| Lifetime | 30 years |
| Surface treatment | Hot Dip Galvanization or painting |
| Delivery Time | 28 days after receiving deposit |
| Galvanizing Standard | EN ISO 1461,ASTM/A123 or equivalent |
| Working & Resting Platform Quantity | 1-3 PCS |
| Antenna Support | 3-18 PCS |
| Microwave Dish | 3-18 PCS |
| Manufacturing and Workmanship | BS449 or AISC |
| Welding Standard | AWS D1.1, AS554, AS 4100 standard or equivalent |
| Nuts& Bolts | Grade 8.8,6.8 or 4.8 |
| Spare parts | All Necessary parts |
Catalogue of certificatge as followings :
2 .Production capacity
| production capacity per month | 3000 tons |
3. Technical support
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality Control
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly: trial assembly before
galvanzation and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2005,is a leading professional manufacturer in the field of
transmission line towers (the voltage up to 500kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 60,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
9. Product catalogue:
