110KV Transmission Pylon Steel Tubular Tower Galvanized
Transmission Line Towers
1. Production description
We are professional manufacturer of steel tubular tower from year
2009,else our including angle steel tower for transmission and
telecommunication tower ,monopole and substation structure ,train
station structures and other structures .
1. Materials are generally Q235 and Q345
| Available height | 5-100m |
| Electric pressure | 10kv--750kv |
| Material | Q345B/A572,minimum yield strength>=345MPA,
Q235B/A36,minimum yield strength>=235MPA |
| Delivery lead time | 30 days after receiving 30% deposit |
| Lifetime | Minimum 30 years |
| Structure | Hybrid tower which mix steel tube and angel steel |
| Galvanizing standard | EN ISO 146,ASTM A123 |
Product Quality Control of the steel tubular tower Fabrication
Processing
From product raw materials procurement to the final products
packages and transport, Qingdao Liangta Steel
Structure Co.,Ltd.control the quality by a sound tower processing
and quality management system to ensure that
the incoming qualified 100%,products quality 100%.
Raw material incoming inspection
Liangta inspect all the steel materials before incoming, First, we
ask the supplier to supply products certificate and quality
assurance.
Then we make strict measurement on contour dimension inspection,
chemical element analysis and mechanical property test .
2. Production capacity
| production capacity per month | 3000 tons |
3. Technical support
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality Control
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly: trial assembly before
galvanzation and after galvanization

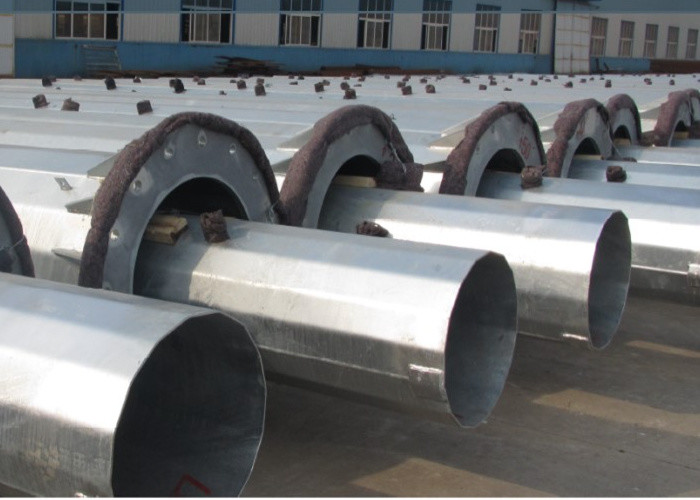

6. Hot dip galvanization and painting

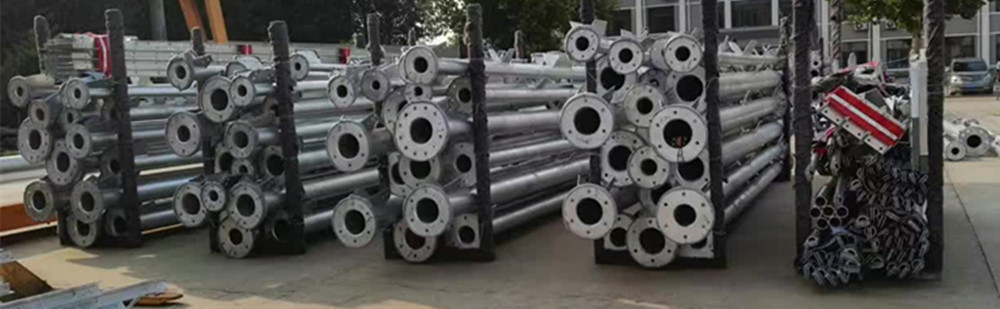

7. Package and delivery
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2005,is a leading professional manufacturer in the field of
transmission line towers (the voltage up to 500kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 60,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
9. Product catalogue:
