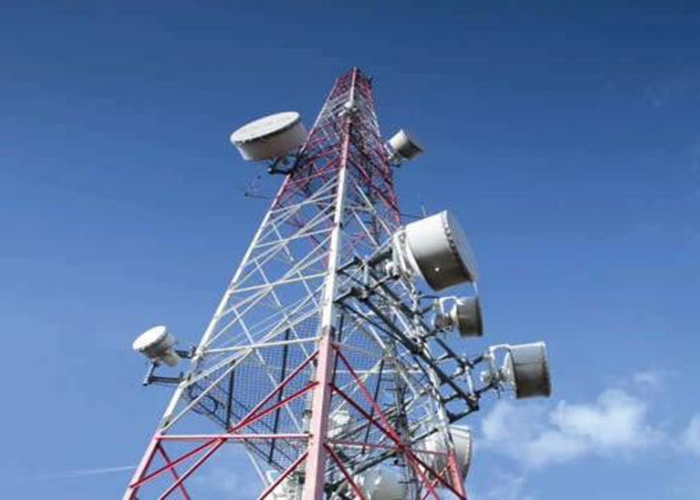

80m Triangle Lattice Telecom Steel Tower Galvanized and Painted
Communication Antenna Tower
1. Production description
This kind telecom steel tower is popular used in different places
with customized design.
We can manufacture all types of telecom steel tower as per
customer's requirements with the production
capacity 3000 tons per month.
DesignStandard : BS 8100 or EIA/TIA -222G
Antenna Design Loading: As requirement
Wind speed : As your requirement .Usually from 60KM/H to 300KM/H
Surface treament: Hot dip Galvanization acoording to BS729 or ASTM 123 .And also can
be painted as requirement.
Ladder: External ladder(light duty tower) or inside ladders(medium
and heavy duty tower ).
For pole ,usually we use step bolts.
Platforms : Rest platform or working platform
Material used : Q345B/A572, Gr50 /S355JR minimum yield strength >=345MPA;
Q235B/A36/S235JR, minimum yield strength>=235MPA
2. Product capacity
We have 5 production line for this telecom steel tower
manufacturing ,We also
have enough room to add equipment if needed.
| Numbers of angle production line | 5 |
| production capacity per month | 5000 tons |
3. Technical support
Our Engineer can design telecom steel towers according to design
code TIA-222G.
Just tell us your requirement about wind speed ,antenna quantity
,platform quantity and ligthing rod height .
Then we will supply detailed drawings .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly: trial assembly before
galvanzation and after galvanization
6. Hot dip galvanization and painting
7. Package and delivery
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2005,is a leading professional manufacturer in the field of
transmission line towers (the voltage up to 500kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 60,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
9. Product catalogue:
