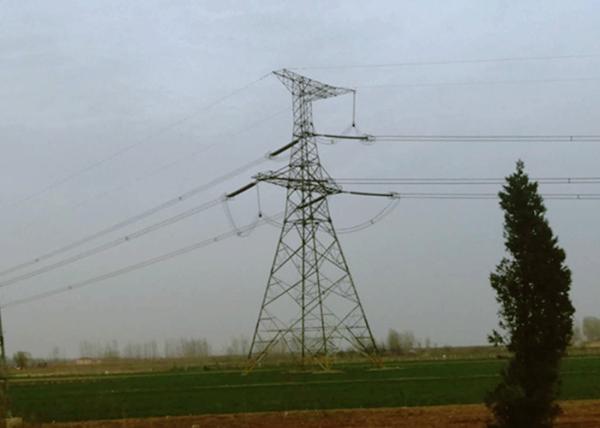

132KV Electric Power Tower Electricity Transmission Line Lattice
Tower
1. Production decription
Prameter of the tower as following :
1 Certificate: ISO 9001,ISO14001,OHSAS45001,SGS
2. Material : Steel grades used for electric power tower:
Chinese Standard Q420,which equal to ASTM A572 Grade 65
Chinese standard Q345B, which equal to ASTM A572 Grade 50
Chinese Q235B, which equal to ASTM A36
Bolts: Chinese grade 6.8 and 8.8, which equal to ASTM A394
3. Hot dip galvanization: GB/T 13912-2002, which similar to ASTM A 123
The welding : AWS D1.1 or CWB standard
4. OEM is welcome.
5. Best quality with reasonable price!
6. The voltage grade is 10-500kV.
7. The monthly production capacity is 3000 Metric tons.
8. Type test and preshipment test is accepted .If needed ,we even can supply an engineer for help installing the
angle steel tower.
Certificate as following:
2. Product capacity
We have 5 auto production line for electric power tower
manufacturing,We can supply 2000 tons angle steel tower
every month .Else we have enogh site for installing more production
line if needed.
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience
of angle steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every angle steel towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
Product Quality Control of the Tower Fabrication Processing
From product raw materials procurement to the final products
packages and transport, Qingdao Liangta Steel
Structure Co.,Ltd.control the quality by a sound tower processing
and quality management system to ensure that
the incoming qualified 100%,products quality 100%.
Raw material incoming inspection
Liangta inspect all the angle steel materials before incoming,
First, we ask the supplier to supply products certificate and
quality assurance.
Then we make strict measurement on contour dimension inspection,
chemical element analysis and mechanical property test .
We have a special physical and chemical room, equipped with WHV-201
Computers Digital Carbon and Sulfur Analyzer, Visible
spectrophotometer, universal material testing machine and so on. we
can do C, S, Si, Mn, P chemical element analysis and tensile
testing according to the YB/4163—2007.We refuse to receive the
materials below standards.
5. Trial assembly
We usually has two ways of trial assembly for angle steel towers :
trial assembly before galvanzation
and after galvanization.
6.Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angle
steel towers,We use steel wire to make it into bundle and use
special material to protect the Zinc.
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2009,is a leading professional manufacturer in the field of
transmission steel towers (the voltage up to 1000kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 40,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
9. Product catalogue:
