220 KV Hot Dip Galvanized Steel Lattice Towers
1. Production decription
LT Steel Structure is experienced in design and manufacture all kind of steel lattice
tower .
Usually a transmission steel lattice tower consists of tower head
,tower body ,tower legs and tower foundation.
Tower material used Q355B ,Q235B in common ,according to the
engineer design.
There are four major categories of transmission towers:suspension
tower , terminal tower , tension tower , and transposition tower .
Some transmission towers combine these basic functions.
Product list :
2. Product capacity
We have 5 auto production line for electric angle steel towers
Manufacturing,We can supply 3000 tons angle steel tower
every month .Else we have enogh site for installing more production
line if needed.

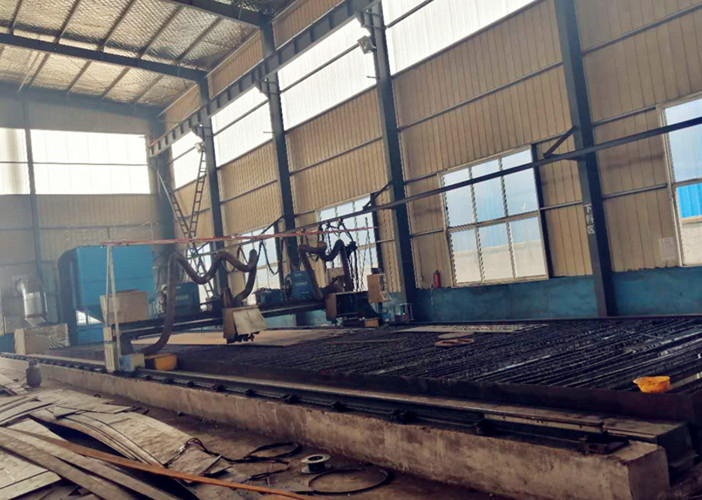

We also have plasma cutting machine ,14m bending machine and auto
welding machines for pole towers .
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience
of lattice steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every steel towers .
Material incoming control:chemical and physical test
Zinc coating thinkness inspection
5. Trial assembly
We usually has two ways of trial assembly for lattice steel towers
: trial assembly before galvanzation
and after galvanization.
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angle
steel towers,We use steel wire to make it into bundle and use
special material to protect the Zinc.
