Self Supporting Steel Lattice Tower for Overhead Transmision Lines
1. Production decription
| Type | Lattice steel transmission tower |
| Material | GB/T:Q235B, Q345B, Q420,
ASTM : A36,A572 GR50, GR65,
BS/EN :S355JR,S235JR |
| Torlance of dimenstion | +- 2% |
| Power | 10KV ~500 KV |
| Surface treatment | Hot dip galvanized according to ASTM A 123, color painting as
clients requirement |
| Connection | Fasteners |
| Design of pole | Against earthquake of 8 grade |

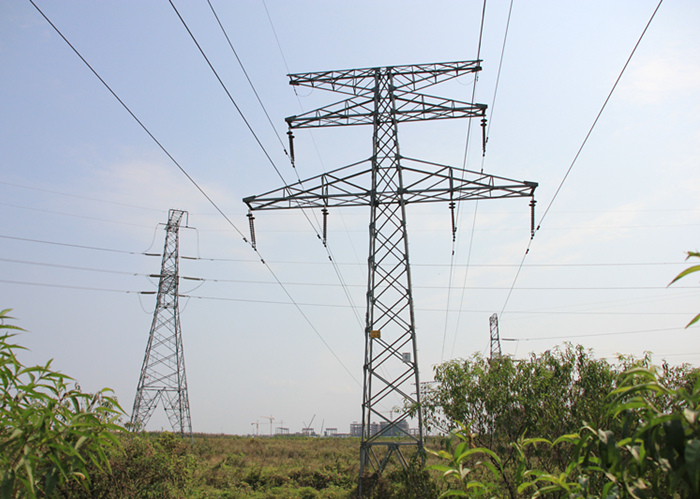

A lattice tower or truss tower is a freestanding vertical framework
tower. This construction is widely used in transmission towers
carrying high voltage electric power lines. Its advantage is good
shear strength at a much lower weight than a tower of solid
construction would have as well as lower wind resistance. In
structural engineering the term lattice tower is used for a
freestanding structure, while a lattice mast is a guyed mast
supported by guy lines.
A lattice transmission tower is a key part of a power transmission
system. A lattice transmission tower consists of the following
parts:
- The peak of the transmission tower
- The cross arm of the transmission tower
- The boom of transmission tower
- Cage of transmission tower
- Transmission Tower Body
- Leg of transmission tower
- Stub/Anchor Bolt and Baseplate assembly of the transmission tower.
Certificate:
Type test
2. Product capacity
We have 6 production line for angle steel manufacturing ,we can
supply 3000 tons angle steel tower per month .
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience
of lattice steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading
plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every steel towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly for lattice steel towers
: trial assembly before galvanzation
and after galvanization.
6. Hot dip galvanization and painting
7. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year
2009,is a leading professional manufacturer in the field of
transmission steel towers (the voltage up to 1000kv),
telecommunication towers, monopoles, substation structures and
rooftop towers. We also supply steel profile products as per
customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of
over 60,000 square meters with an annual production capacity 40,000
tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour
drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems
Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like
Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be
answered in time .
8. Product catalogue:
